Want to know how the self centering chuck works? Want to know the performance parameters of the self centering chuck? This article provides you with a detailed usage guide, which can help you fully understand the self centering chuck and help you choose the cheapest and most suitable product for you. If you are interested, come to Dairuike for consultation!
What is a self centering chuck?
A self centering chuck is a powerful tool with a wide range of applications. It automatically adjusts the position of each jaw when clamping a workpiece, achieving centered clamping. Currently, it is primarily used in CNC machine tools, lathes, machining centers, and other equipment, making it a common and important clamping device in modern machining.
Its main operating principle is to utilize gear transmission to cause multiple jaws to move simultaneously as the spindle or clamping mechanism rotates, thereby clamping the workpiece and maintaining its center.
How does a self centering chuck work?
A self centering chuck relies on a worm gear or gear drive system to drive the synchronized radial motion of three or more jaws. In a specific work environment, rotating the operating handle causes the central gear to move each jaw back and forth along a spiral groove. This structure ensures that even if the jaws and workpiece start in different positions, they remain aligned during rotation, achieving self centering and clamping operation.
Performance Parameters of a self centering chuck

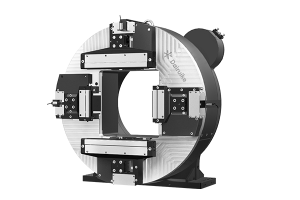

Self Centering Chuck (Front Chuck)：
| OD | Spindle Bore | Centre-height | Total Weight | Inertia | Repeatability | Rotary precision |
| mm | mm | mm | kg | Kg.cm2 | mm | mm |
| Φ907 | 370×370 | 465±0.05 | 660 | 394700 | ≤0.05 | ≤0.05 |
| Single Claw trip | Single Claw thrust | Processing Range | Permissible pressure | Rated speed | thickness of pipe | Holdup time |
| mm | Kg.f | mm | Mpa | rpm | mm | h |
| 176 | 920 | 20-360 | 0.3-0.8 | 50 | ≥3 | 12 |

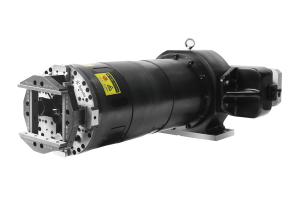

Self Centering Chuck （Rear Chuck）：
| OD | Centre-height | Total Weight | Inertia | Repeatability | Rotary precision |
| (mm) | (mm) | (kg) | （Kg.cm²) | （mm） | （mm） |
| Φ282 | 145±0.05 | 107 | 5400 | ≤0.1 | ≤0.15 |
| Single Claw trip | Single Claw thrust | Processing Range | Permissible pressure | Rated speed | thickness of pipe |
| （mm） | （Kg.f） | （mm） | （Mpa） | （rpm） | （mm） |
| 45 | 240 | 10-220 | 0.3-0.8 | 150 | ≥1 |
Self centering chuck Features
self centering chucks offer the following key features:
Automatic centering: Multiple jaws simultaneously clamp to ensure axial alignment of the workpiece.
Quick clamping: Improves clamping efficiency, suitable for mass production.
Stable precision: High repeatability and high precision, suitable for applications requiring precision machining.
Versatile: Suitable for a wide range of round and special-shaped parts.
Applications of self centering chucks
self centering chucks are widely used in the following industries and equipment:
CNC lathes and conventional lathes
Vertical and horizontal machining centers
Grinding and milling machines
Automated assembly lines
Pipe and flange processing
Robot clamping systems
They are widely used in aerospace, automotive, machining, mold and die processing, power equipment, medical devices, and other fields.
Comparison of self centering chucks and Conventional Chucks
| Project | self centering chuck | Ordinary chuck |
| Alignment performance | Automatic centering | Manual alignment required |
| Convenience of operation | High | Medium |
| Repeat positioning accuracy | Height (±0.01mm) | Lower |
| Applicable workpiece shape | Circle, polygon | Irregular shapes are also suitable |
| Applicable device types | CNC lathes, automatic lines | Ordinary lathe |
| Clamping speed and efficiency | Quick clamping | Long clamping time |
| Cost and Price | Relatively high | Lower |
Self centering chuck Q&A
- Are self centering chucks suitable for CNC lathes?
Yes, self centering chucks are particularly well-suited for CNC lathes. Their high precision and automatic alignment fully leverage the efficiency and precision of CNC machining.
- How do you clean a self centering chuck?
It is recommended to regularly clean debris from the chuck jaws with high-pressure air to prevent subsequent operation. Also, clean the transmission mechanism with diesel or engine oil after a period of use to prevent seizures and rust.
- How often should a self centering chuck be lubricated?
Under normal use, it is recommended to lubricate the chuck weekly or every 50 hours using high-quality lithium-based grease to maintain optimal performance.
- What is the lifespan of a self centering chuck?
The typical service life is 5–10 years, but the specific lifespan depends on factors such as frequency of use, operating conditions, and lubrication and maintenance.
- Are the jaws of a self centering chuck replaceable?
Yes, it is. Most chuck jaws feature a standard quick-change design, allowing for interchangeable internal, external, or soft jaws depending on the workpiece size.
- How do self centering chucks achieve automatic centering?
self centering chucks can achieve automatic centering. Through an internal gear linkage mechanism, multiple jaws move synchronously driven by the same gear, achieving automatic centering.
Self centering chuck Usage and Maintenance Guide
Installation Guide:
First, confirm that the chuck mounting holes align with the machine tool spindle.
Secure the chuck using a center bolt or flange connection.
Finally, adjust the initial jaw position and test the clamping stability.
Usage Precautions:
Be careful not to exceed the rated clamping force.
Avoid slippage on the workpiece surface.
Ensure the jaws are clean before operation to prevent any impact on normal operation.
Maintenance Tips:
Regularly lubricate the spindle connection and the internal gears of the jaws.
Check the jaws for wear and replace if necessary.
Perform regular precision calibration tests to prevent any degradation in performance.
Conclusion
Self-centering chucks have become an essential tool in modern machining equipment. Their advantages, such as automatic centering, high repeatability, and efficient clamping, have made them the preferred choice for CNC lathes, grinders, and other high-precision clamping applications.
If you’re looking for a self-centering chuck, a suitable clamping solution for mid- to high-end machine tools, or if you’re looking to improve machining efficiency, a self-centering chuck is a must-have!
