▎Description

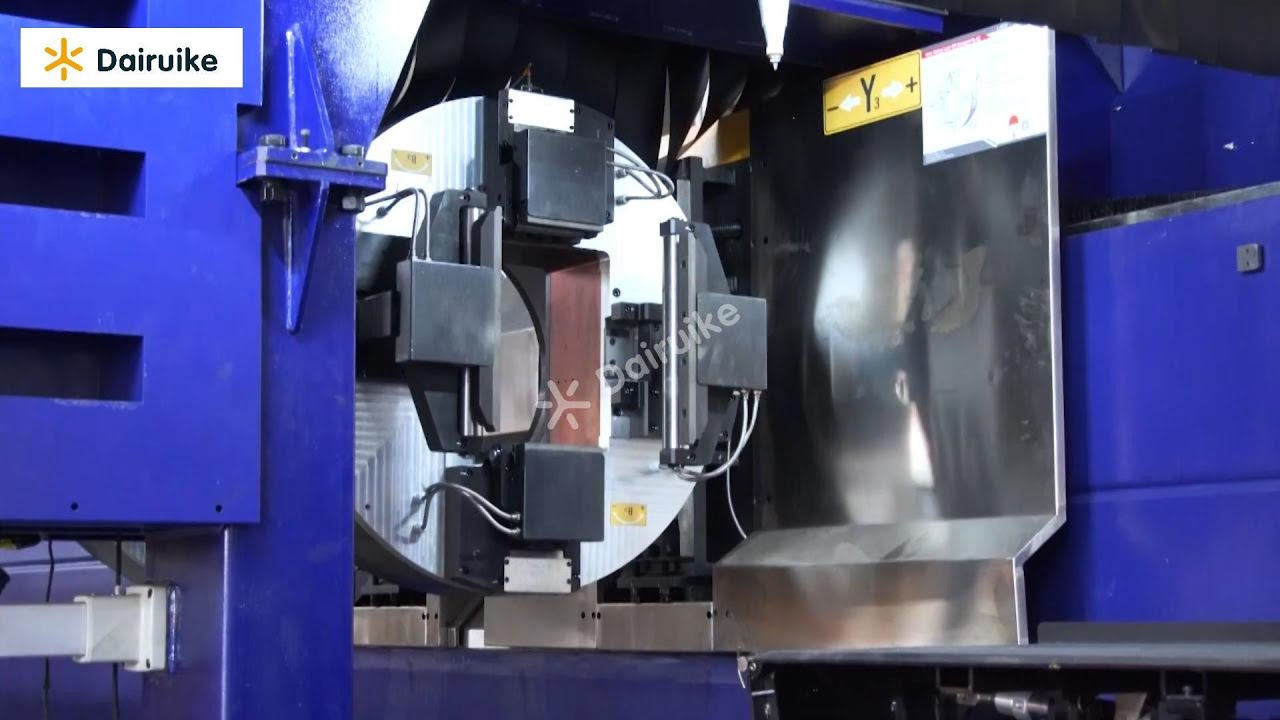

The 360FS square hole full-stroke laser chuck is a heavy-duty clamping accessory designed for laser tube cutting machines. It is particularly suitable for high-demand processing scenarios of large-diameter, long tubes and heavy tubes. It has super clamping capacity, and the full-stroke design allows it to clamp tubes with a diameter of 20-360mm and a weight of 1 ton without changing the jaws, greatly reducing the downtime and operational complexity caused by changing the fixtures during production. This design not only improves processing efficiency, but also significantly reduces the workload of operators, making the entire production process smoother and more continuous.
- What is the function of adding pulling jaws to the 360FS laser chuck?
The 360FS square hole full-stroke laser chuck is equipped with wide and narrow double roller jaws as standard. On the basis of the roller jaws, toothed pulling jaws can be optionally equipped. The roller jaws are mainly used for support, while the toothed jaws are responsible for pulling. This design realizes the rapid switching between pulling and supporting functions, which makes it more flexible and efficient in heavy tube processing and can flexibly respond to different processing needs. In the support mode, the roller jaws can hold the pipe normally and stably to complete the cutting of long pipes; while in the pulling mode, the jaws can realize the pulling and cutting of the pipe through the hole. This design greatly broadens the application scenarios of laser cutting, allowing the 360FS square hole laser chuck to easily cope with more complex and diverse processing tasks.
In addition, the biggest advantage of the pulling jaws is its efficient and simple operation, which not only improves the overall operating efficiency, but also reduces the dependence on manual labor, significantly improving the automation level of the production line. After the 360FS square hole laser chuck is equipped with toothed pulling jaws, it can meet the needs of twin chucks, so that the workpiece through-hole pulling and cutting can be realized on the three- or four-chuck configuration model. This configuration is particularly suitable for heavy-duty pipe processing scenarios. Whether in terms of the convenience of pulling processing operations or the optimization of the overall production rhythm, the optional addition of pulling jaws to the 360FS square hole laser chuck can provide users with unparalleled efficiency improvement.
▎Performance Parameter
| OD mm |
Spindle Bore mm |
Centre-height mm |
Total Weight kg |
Inertia Kg.cm2 |
Repeatability mm |
Rotary precision mm |
| Φ907 | 370×370 | 465±0.05 | 660 | 394700 | ≤0.05 | ≤0.05 |
| Single Claw trip mm |
Single Claw thrust Kg.f |
Processing Range mm |
Permissible pressure Mpa |
Rated speed rpm |
thickness of pipe mm |
Holdup time h |
| 176 | 920 | 20-360 | 0.3-0.8 | 50 | ≥3 | 12 |
▎Features & Enhancements
The 360FS square hole laser chuck is designed for exceptional stability and precision, making it a perfect choice for heavy-duty tube processing applications. Its advanced engineering allows for a seamless transition between pulling and support functions, enabling operators to adapt to a wide range of cutting tasks with ease. This flexibility is particularly beneficial in environments where production demands can change rapidly, as it empowers users to maximize their efficiency without compromising quality.
Additionally, the 360FS chuck’s compatibility enhances its functionality, providing even greater adaptability for complex cutting operations. Its sturdy design effectively manages heavy metal tubes, ensuring that vibrations are minimized, and precision is maintained throughout the cutting process. This results in cleaner cuts and reduced material waste, ultimately contributing to cost savings for manufacturers. With its user-friendly features and robust performance, the 360FS square hole laser chuck not only meets the challenges of today’s demanding manufacturing landscape but also positions itself as a reliable partner for achieving superior results.
▎Application
As a manufacturer of laser tube cutting chucks, Dairuike has always taken technology research and development as the guide, and the user’s front-line application needs as the innovation direction since its establishment, promoting the transformation of metal processing methods and upgrading precision manufacturing in various industries such as engineering machinery, rail transportation, elevator manufacturing, agricultural machinery, and steel structure construction. This is the proposition of the times, and it is also the meaning of Dairuike’s existence and the value of innovation.
